Products > LED Component > LED Lamp

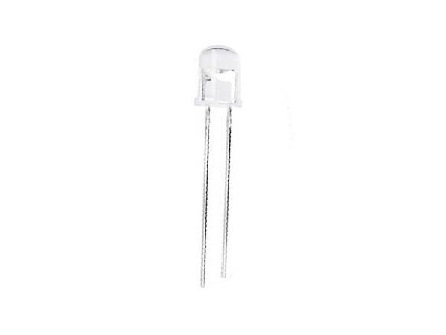

5 mm IR LED
 20 degree
850nm/940nm/1200nm/1350nm/1450nm/1550nm/1650nm

 Item No.: ADR050L-2095EIR850、ADR050L-2030EIR940AG050L-2008EI1200AG050L-2008EI1450AG050L-2008EI1550AG050L-2008EI1650、AX050L-2020EI1350

Features

Ÿ   High reliability

Ÿ   Low Power Consumption

Ÿ   RoHS compliant

Applications

Ÿ   Signal transmission

Parameter

Symbol

Min.

Typ.

Max.

Unit

Condition

Wavelength

λP

1350

-

nm

IF50 mA

luminous power

Po

-

3

-

mW

Forward Voltage

VF

0.6

-

1.4

V

Reverse current

IR

-

-

10

μA

VR=5V

Viewing Angle

20θ1/2

20

-

deg

IF=20mA

Full Angle

θ

-

30

-

deg

Enviroment
Operation Temperature: -30°C ~ 85°C
Storage Temperature: -40°C ~ 100°C

Please contact us for more detail.
