Products > LED Component > High Power LED

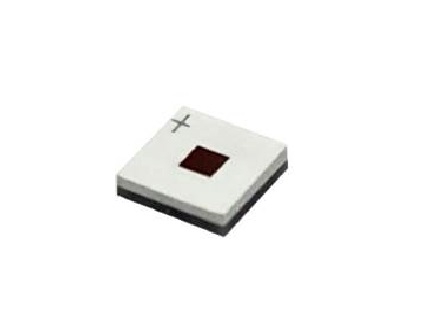

10W 3535 Single Color LED
 Color :
Red / Green / Royal Blue
Dominant Wavelength :
Red:620-630nm
Green:520-530nm
Royal Blue:450-455nm

Item No.: AT3535F-10LEX
Applications
 Entertainment lighting (Stage lighting)
Architectural lighting2019

Color

Part Number

Emitter

Luminous Flux  or  Radiometric Power

@1000mA

Refer @2500mA

Min.

Typ.

Typ.

Red

AT3535F-10LER

87.4 lm

105 lm

204 lm

Green

AT3535F-10LEG

170 lm

205 lm

310 lm

Royal Blue

AT3535F-10LERB

1225 mW

1300 mW

2640 mW

Color

Forward Voltage VF (V)

Thermal Resistance Junction to Thermal Pad (°C/ W)

@ 1000mA

Refer @2500mA

Min.

Typ.

Max.

Typ.

Red

1.85

2.30

2.80

3.00

3.5

Green

2.70

3.40

3.70

4.08

4.0

Royal Blue

2.70

3.00

3.50

3.27

1.8



Enviroment
Operation Temperature: -40°C ~ 90°C
Storage Temperature: -40°C ~ 90°C

Please contact us for more detail.
