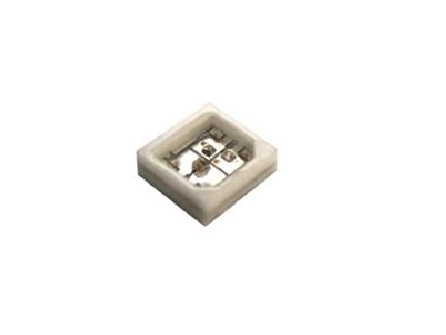

3030 1W UVA+UVC 265/410 nm Dual Range UV LED
 Color : UVA+UVC
UVA : 265nm/275nm/285nm
UVC : 400nm/405nm/410nm

Item No.: AT3030DU-1LEV2641
Applications
 Disinfection, Sterilization
Phototherapy
 Fluorescent spectroscopy
 Detection

Radiation

Pattern

Color

Part Number Emitter

Test Current

(mA)

Radiometric Power (mW)

Min.

Typ.

Lambertian

UVC

AT3030DU-1LEV2641

20

1.5

3

UVA

20

10

13

Color

Test Current

(mA)

Forward Voltage VF (V)

Thermal Resistance Junction to Slug (°C/ W)

Min.

Typ.

Max.

UVC

20

6.0

7.5

9.0

15

UVA

20

3.0

3.4

3.8

15



Enviroment
Operation Temperature: -40°C ~ 60°C
Storage Temperature: -40°C ~ 85°C

Please contact us for more detail.
