Products > LED Component > UV LED

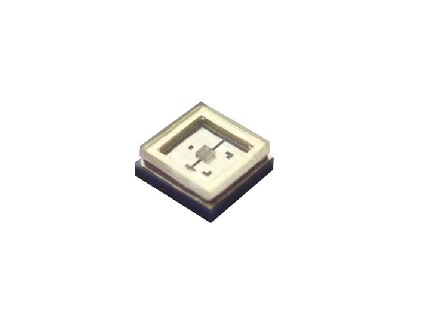

3535 0.5W UV 270-280nm LED
 Size:3.5*3.5*1.6mm
Suitable for all SMT assembly and solder process
Available on tape and reel
Moisture sensitivity level:Level 3
RoHS compliant

Item No.: AD3535FT-05LEV2728
Applications
 Ultraviolet disinfection
• Phototherapy
 Bio-Analysis/Detection
 General use

Parameter

Symbol

Test

Min.

Typ.

Max.

Unit

Reverse Current

IR

VR=5V

-

-

5

μA

Forward Voltage

VF

IF=50mA

4.5

-

7

V

Total Radiant Flux

Φe

IF=50mA

3.4

5.8

6.9

mW

IF=80mA

6.9

9.2

11.5

F=100mA

9.2

11.5

13.8

Peak wavelength

λp

IF=50mA

270

275

280

nm

Spectral Line Half - Width

Δλ

IF=50mA

8

10

12

nm

Thermal Resistance Rtpa

RTHJ-S

IF=50mA

-

45

-

/W

Half Intensity Angle

2θ1/2

IF=50mA

-

120

-

deg

Enviroment
Operation Temperature: -40°C ~ 55°C
Storage Temperature: -40°C ~ 80°C

Please contact us for more detail.
