Products > LED Component > UV LED

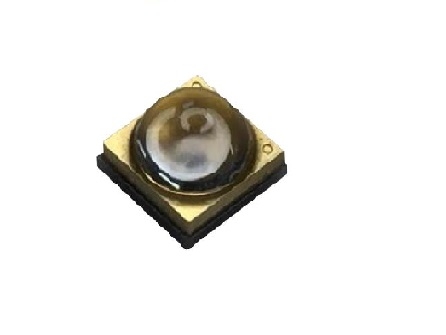

3535 0.5W Focus 60 degree UV 270-280nm LED
 Size:3.75*3.75*2.85mm
Suitable for all SMT assembly and solder process
Available on tape and reel
Moisture sensitivity level:Level 3
RoHS compliant

Item No.: AD3535FO-05FEV2728
Applications
Ultraviolet disinfection
•Phototherapy
•Bio-Analysis/Detection
General uset

Parameter

Symbol

Test

Min.

Typ.

Max.

Unit

Reverse Current

IR

VR=5V

-

-

5

μA

Forward Voltage

VF

IF=100mA

-

7

-

V

Peak wavelength

λp

F=100mA

-

275

-

nm

Spectral Line Half - Width

Δλ

IF=100mA

-

10

-

nm

Total Radiant Flux

Φe

IF=100mA

-

20

-

mW

Half Intensity Angle

2θ1/2

IF=100mA

-

60

-

deg

Enviroment
Operation Temperature: -40°C ~ 55°C
Storage Temperature: -40°C ~ 80°C

Please contact us for more detail.
