Products > LED Component > High Power LED

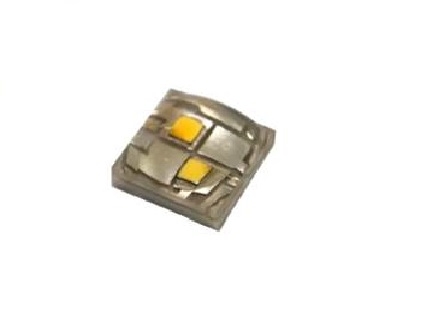

2W 3030 Lambertian Cool White Warm White 2 color i
 Compact light source
Cool White and Warm White two color in one package
Maximum drive current: 300mA per LED die
Lead free reflow soldering
Superior ESD protection
RoHS compliant

Item No.: AT3030-2LEWTWW
Applications
 Entertainment lighting (Stage lighting)
Architectural lighting
 Mood lighting
 Outdoor lighting
 Indoor lighting

Color

Part Number Emitter

Luminous Flux ΦV(lm)

CRI

Min.

Typ.

Min.

Warm White

AT3030-2LEWTWW

32

41

80

White

44

55

Color

Forward Voltage VF (V)

Thermal Resistance Junction to Slug (°C/ W)

Min.

Typ.

Max.

Warm White

2.8

3.2

3.6

10

White

2.8

3.2

3.6



















Enviroment
Operation Temperature: -40°C ~ 85°C
Storage Temperature: -40°C ~ 120°C

Please contact us for more detail.
