Products > LED Component > Full Color Power LED

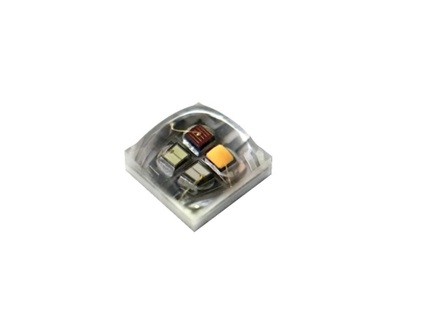

3W 3030 Lambertian RGB+PC Amber 4 color in 1 LED
 Compact light source
R, G, B, A four color in one package
Maximum drive current: 300mA per LED die
Lead free reflow soldering
RoHS compliant

Item No.: AT3030-3LERGBPA
Applications
 Entertainment lighting (Stage lighting)
Architectural lighting
 Mood lighting
 Outdoor lighting
 Indoor lighting

Color

Part Number Emitter

Luminous Flux ΦV(lm)

Min.

Typ.

Red

AT3030-3LERGBPA

30

36

Green

40

52

Blue

8

11

PC Amber

15

18

Color

Forward Voltage VF (V)

Thermal Resistance Junction to Slug (°C/ W)

Min.

Typ.

Max.

Red

1.90

2.25

2.60

10

Green

3.00

2.45

3.80

Blue

2.90

3.30

3.70

PC Amber

2.90

3.30

3.70

Radiation Pattern

Color

Dominant Wavelength λD

Total

Included Angle (degrees) θ0.90V

Viewing Angle (degrees)
2
θ1/2

Min.

Typ.

Max.

Lambertian

Red

620 nm

623 nm

630 nm

170

155

Green

518 nm

522 nm

528 nm

Blue

453 nm

457 nm

460 nm

PC Amber

592.5 nm

594 nm

595.5 nm


Enviroment
Operation Temperature: -40°C ~ 85°C
Storage Temperature: -40°C ~ 120°C

Please contact us for more detail.
