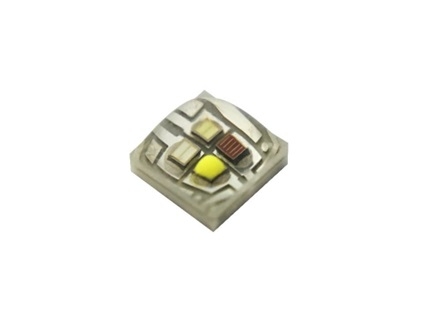

| 3W 3030 Lambertian RGB＋PC Green 4 color in 1 LED |
| | Compact light source
R, G, B, PC Green four color in one package
Maximum drive current: 300mA per LED die
Lead free reflow soldering
RoHS compliant |
|
|
|
Item No.: AT3030-3LERGBPCG
Applications
• Entertainment lighting (Stage lighting)
•Architectural lighting
• Mood lighting
• Outdoor lighting
• Indoor lighting
|
Color
|
Part Number Emitter
|
Luminous Flux ΦV(lm)
|
|
Min.
|
Typ.
|
|
Red
|
AT3030-3LERGBPCG
|
30
|
36
|
|
Green
|
40
|
52
|
|
Blue
|
8
|
11
|
|
PC Green
|
44
|
56
|
|
Color
|
Forward Voltage VF (V)
|
Thermal Resistance Junction to Slug (°C/ W)
|
|
Min.
|
Typ.
|
Max.
|
|
Red
|
1.90
|
2.25
|
2.60
|
10
|
|
Green
|
3.00
|
3.45
|
3.80
|
|
Blue
|
2.90
|
3.30
|
3.70
|
|
PC Green
|
2.90
|
3.30
|
3.70
|
|
Radiation Pattern
|
Color
|
Dominant Wavelength λD
|
Total Included Angle (degrees) θ0.90V
|
Viewing Angle (degrees)
2 θ1/2
|
|
Min.
|
Typ.
|
Max.
|
|
Lambertian
|
Red
|
620 nm
|
623 nm
|
630 nm
|
170
|
155
|
|
Green
|
518 nm
|
522 nm
|
528 nm
|
|
Blue
|
453 nm
|
457 nm
|
460 nm
|
|
PC Green
|
562.6 nm
|
566 nm
|
569.5 nm
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Enviroment
Operation Temperature: -40°C ~ 85°C
Storage Temperature: -40°C ~ 120°C
Please contact us for more detail.
