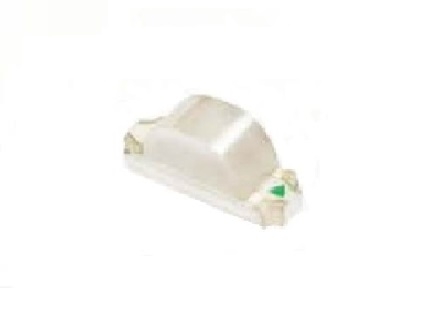

Side View 1204 RGB LED with IC
 Color:RGB
wavelength:
‧Red:615-625nm
‧Green:525-535nm
‧Blue:465-475nm

Item No.: SV3210TC-05LURGB4AA-A
Applications
 LED point light source, LED pixel screen.
LED fantasy soft light bar, LED fantasy color hard light bar.
LED Phantom running Horse Lamp, LED Phantom Color guardrail Tube.
 LED Phantom Module Lamp, LED Phantom Lamp string.

Parameter

Symbol

Min.

Typ.

Max.

Unit

Test Condition

Chip Internal Supply Voltage

VDD

4.5

5.0

5.5

V

-

Working Current

IDD

-

-

2

mA

RGB non-loaded

High Level Input Voltage

VIH

2.7

-

VDD

V

Din

Low Level Input Voltage

VIL

0

-

1.0

V

Din

High Level Output Voltage

VOH

4.5

-

-

V

IOH =4mA

Low Level Output Voltage

VOL

-

-

0.4

V

IOL=4mA

Pull Down Resistance

RPD

-

500K

-

Ω

DIDO (VDD=5V)

RGB Maximum Sink Current

Isink

4.75

5.0

5.25

mA

Vo=VDD-3.0V

(VDD=5V)

RGB Leakage Current (When Cosed)

Ioff

-

-

1

uA

PWM off, R G B

Port=5V

Enviroment
Operation Temperature: -40°C ~ 85°C
Storage Temperature: -40°C ~ 85°C

Please contact us for more detail.
