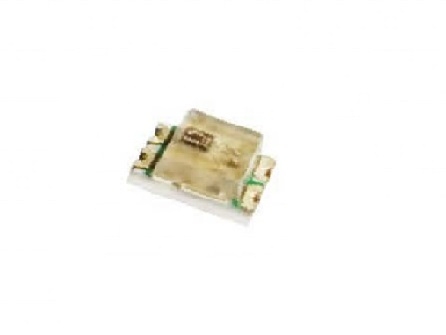

Item No.: TV-0606TC-20URGB4AA-A
Applications
• LED point light source, LED pixel screen.
•LED fantasy soft light bar, LED fantasy color hard light bar.
• LED Phantom running Horse Lamp, LED Phantom Color guardrail Tube.
• LED Phantom Module Lamp, LED Phantom Lamp string.
|
Parameter
|
Symbol
|
Min.
|
Typ.
|
Max.
|
Unit
|
Test Condition
|
|
Chip Internal Supply Voltage
|
VDD
|
4.5
|
5.0
|
5.5
|
V
|
-
|
|
Working Current
|
IDD
|
-
|
-
|
2
|
mA
|
RGB non-loaded
|
|
High Level Input Voltage
|
VIH
|
2.7
|
-
|
VDD
|
V
|
Din
|
|
Low Level Input Voltage
|
VIL
|
0
|
-
|
1.0
|
V
|
Din
|
|
High Level Output Voltage
|
VOH
|
4.5
|
-
|
-
|
V
|
IOH =4mA
|
|
Low Level Output Voltage
|
VOL
|
-
|
-
|
0.4
|
V
|
IOL=4mA
|
|
Pull Down Resistance
|
RPD
|
-
|
500K
|
-
|
Ω
|
DI、DO (VDD=5V)
|
|
RGB Maximum Sink Current
|
Isink
|
4.75
|
5.0
|
5.25
|
mA
|
Vo=VDD-3.0V
(VDD=5V)
|
|
RGB Leakage Current (When Cosed)
|
Ioff
|
-
|
-
|
1
|
uA
|
PWM off, R G B
Port=5V
|
Enviroment
Operation Temperature: -40°C ~ 85°C
Storage Temperature: -40°C ~ 85°C
Please contact us for more detail.
E-mail: service@all-brite-intl.com
|
