Products > LED Component > Chip LED

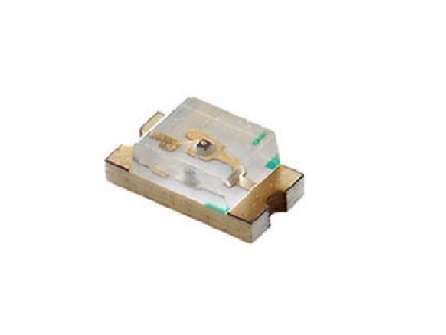

0603 Warm White LED
 Dice Material : Cree Chip
Light Color : White
Lens Color : Yellow Diffused

Item No.: AP0603-05EWW

Parameter

Symbol

Min.

Typ.

Max.

Unit

Test Condition

Luminous Intensity

IV

-

300

-

mcd

IF=5mA

Viewing Angle

2θ 1/2

-

130

-

Deg

Note2

CIE Chromaticity

X

-

0.4339

-

-

IF=5mA

Y

-

0.4029

-

-

Forward Voltage

VF

-

2.7

3.0

V

IF=5mA

Reverse Current

IR

-

-

50

μA

VR=5V

Enviroment
Operation Temperature: -40°C ~ 85°C
Storage Temperature: -40°C ~ 85°C

Please contact us for more detail.
