Products > LED Component > LED Lamp

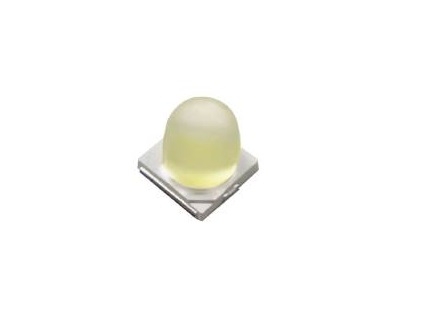

3535 3W 60 degree White LED 6000K
 Viewing angle: 60°
Best thermal material solution of the world
Best Moisture Sensitivity: JEDEC Level 1
RoHS compliant

Item No.: AP3535F60-3NEWT5080-R7
Applications
Entertainment Lighting
Commercial Lighting
 Indoor Lighting
 Outdoor Lighting

Color

Part Number

Luminous Flux ΦV (lm)

CRI

@200mA

Refer @700mA

Emitter

Min.

Typ.

Min.

Typ.

Min.

White

AP3535F60-3NEWT5080-R7

70

80

204

239

70

Color

Forward Voltage VF (V)

Thermal Resistance Junction to Slug (°C/ W)

@ 200mA

Refer @700mA

Min.

Typ.

Max.

Typ.

White

2.60

2.80

3.20

3.11

7

Color

Color Temperature CCT

Total

Included Angle (degrees) θ0.90V

Viewing Angle (degrees)
2
θ1/2

Min.

Typ.

Max.

White

5000 K

6525 K

8050 K

140

60



Enviroment
Operation Temperature: -40°C ~ 100°C
Storage Temperature: -40°C ~ 100°C

Please contact us for more detail.
