Products > LED Component > UV LED

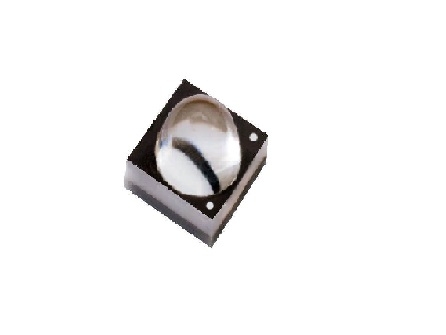

3535 5W 60 degree Quartz lens UV LED
 .100% foot print compatible with Cree XP-C / XP-E / XP-G
.Best thermal material solution of the world
.Best Moisture Sensitivity: JEDEC Level 1
.RoHS compliant
.Quartz Glass Lens
.View angle 60°

Item No.: AT3535FQZ-560MEV3641
LEDs

Radiation

Pattern

Color

Part Number

Radiometric Power (mW)

@700mA

Refer @1500mA

Emitter

Min.

Typ.

Typ.

Lambertian

UV 3637

AT3535FQZ-560MEV3637

755

870

1590

UV 3839

AT3535FQZ-560MEV3839

910

1150

2220

UV 3940

AT3535FQZ-560MEV3940

910

1150

2220

UV 4041

AT3535FQZ-560MEV4041

910

1150

2220

Color

Forward Voltage VF (V)

Thermal Resistance Junction to Slug
(
°C/ W)

@ 700mA

Refer @1500mA

Min.

Typ.

Max.

Typ.

UV 3637

3.40

3.60

4.00

3.80

5

UV 3839

3.20

3.55

4.00

3.75

UV 3940

3.20

3.55

4.00

3.75

UV 4041

3.20

3.55

4.00

3.75























Enviroment
Operation Temperature: -40°C ~ 85°C
Storage Temperature: -40°C ~ 100°C

Please contact us for more detail.
