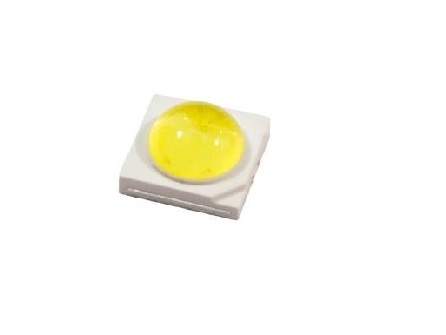

Item No.: AT3535FX-2LEPB
Applications
• Warning light
|
Color
|
Part Number
Emitter
|
Luminous Flux ΦV(lm)
|
|
|
@350mA
|
Refer@500mA
|
|
|
Min.
|
Typ.
|
Typ.
|
|
|
PC Blue
|
AT3535FX-2LEPB
|
30
|
50
|
65
|
|
|
Color
|
Forward Voltage VF (V)
|
Thermal Resistance Junction to Slug (°C/ W)
|
|
|
@350mA
|
Refer @500mA
|
|
|
Min.
|
Typ.
|
Max.
|
Typ.
|
|
|
PC Blue
|
2.8
|
3.1
|
3.4
|
3.3
|
13
|
|
|
Radiation Pattern
|
Color
|
Dominant Wavelength λD
|
Total
Included Angle (degrees) θ0.90V
|
Viewing Angle (degrees) 2 θ1/2
|
|
Min.
|
Typ.
|
Max.
|
|
Lambertian
|
PC Blue
|
465 nm
|
470 nm
|
475 nm
|
160
|
130
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Enviroment
Operation Temperature: -40°C ~ 90°C
Storage Temperature: -40°C ~ 120°C
Please contact us for more detail.
