Products > LED Component > High Power LED

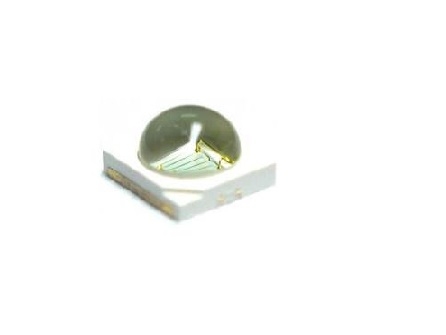

3535 5W Blue 470-485 nm LED


Item No.: AT3535F-5LEB
Applications
 Entertainment Lighting
Commercial Lighting
 Indoor Lighting
 Outdoor Lighting

Radiation Pattern

Color

Part Number

Luminous Flux ΦV(lm)

@350mA

Refer @1200mA

Emitter

Min.

Typ.

Min.

Typ.

Lambertian

Blue

AT3535F-5LEB

39.8

45

98

112

Color

Forward Voltage VF (V)

Thermal Resistance Junction to Slug (°C/ W)

@ 350mA

Refer @1200mA

Min.

Typ.

Max.

Typ.

Blue

2.85

3.20

3.60

4.10

8

Radiation Pattern

Color

Dominant Wavelength λD

Total

Included Angle (degrees) θ0.90V

Viewing Angle (degrees)
 2
θ1/2

Min.

Typ.

Max.

Lambertian

Blue

470 nm

480 nm

485 nm

160

130





































Enviroment
Operation Temperature: -40°C ~90°C
Storage Temperature: -40°C ~ 120°C

Please contact us for more detail.
