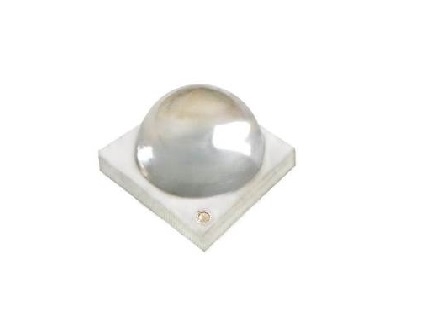

Item No.: AT3535FT-12M6EV2628
Applications
• Disinfection
• Phototherapy
• Bio-Analysis/Detection
|
Radiation
Pattern
|
Color
|
Part Number Emitter
|
Radiometric Power (mW)
|
|
Min.
|
Typ.
|
|
Focusing
|
UVC
|
AT3535FT-12M6EV2628
|
105
|
130
|
|
Color
|
Forward Voltage VF (V)
|
Thermal Resistance Junction to Slug (°C/ W)
|
|
Min.
|
Typ.
|
Max.
|
|
UVC
|
15
|
18
|
21
|
2
|
|
Radiation
Pattern
|
Color
|
Peak Wavelength λP
|
Total
Included Angle (degrees) θ0.90V
|
Viewing Angle (degrees)
2 θ1/2
|
|
Min.
|
Typ.
|
Max.
|
|
Focusing
|
UVC
|
265 nm
|
275 nm
|
280 nm
|
75
|
60
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Enviroment
Operation Temperature: -40°C ~ 60°C
Storage Temperature: -40°C ~ 85°C
