Products > LED Component > UV LED

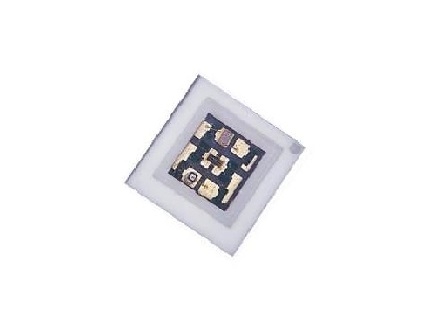

3535 1W UVA+UVC 275+405 nm Dual Range UV LED
 • Best thermal material solution of the world
• RoHS compliant
• View angle 120°
• UVA+UVC dual wavelength design
• Inside

Item No.: AT3535DU-1LEV2740
Applications
 Disinfection, Sterilization
• Phototherapy
 Fluorescent spectroscopy
 Detection

Radiation

Pattern

Color

Part Number Emitter

Test Current

(mA)

Radiometric Power (mW)

Refer

Test

Current

(mA)

Refer

Radiometric

Power (mW)

Min.

Typ.

Typ.

Lambertian

UVC

AT3535DU-1LEV2740

20

1.5

2.5

70

7.5

UVA

20

10

13

40

40

Color

Test Current

(mA)

Forward Voltage VF (V)

Thermal Resistance Junction to Slug (°C/ W)

Min.

Typ.

Max.

UVC

20

5.0

6.8

8.0

15

UVA

20

3.0

3.2

3.4

15

Radiation

Pattern

Color

Test Current

(mA)

Peak Wavelength λP

Total

Included Angle (degrees) θ0.90V

Viewing Angle (degrees)
2
θ1/2

Min.

Typ.

Max.

Lambertian

UVC

20

265 nm

275 nm

280 nm

160

120

UVA

20

400 nm

405 nm

410 nm

160

120


Enviroment
Operation Temperature: -40°C ~ 60°C
Storage Temperature: -40°C ~ 85°C

Please contact us for more detail.
