Products > LED Component > UV LED

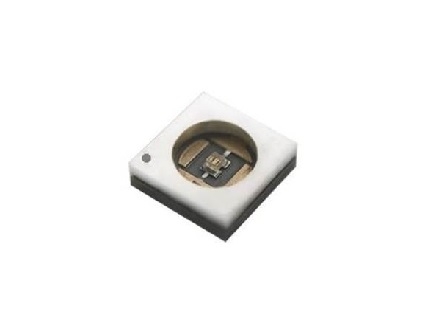

3535 0.2W Lambertian UV 265-280nm LED
 •Best thermal material solution of the world
•RoHS compliant
•View angle 120°

Item No.: AT3535FL-02LEV2628
Applications
 Disinfection
• Phototherapy
 Bio-Analysis/Detection

Radiation

Pattern

Color

Part Number Emitter

Radiometric Power (mW)

Min.

Typ.

Lambertian

UVC

AT3535FL-02LEV2628

2

3.5

Color

Forward Voltage VF (V)

Thermal Resistance Junction to Slug (°C/ W)

Min.

Typ.

Max.

UVC

5.0

6.8

8.0

15

Radiation

Pattern

Color

Peak Wavelength λP

Total

Included Angle (degrees) θ0.90V

Viewing Angle (degrees)
2
θ1/2

Min.

Typ.

Max.

Lambertian

UVC

265 nm

275 nm

280 nm

160

120


Enviroment
Operation Temperature: -40°C ~ 60°C
Storage Temperature: -40°C ~ 85°C

Please contact us for more detail.
