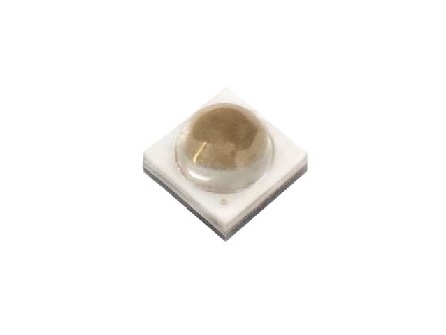

| 5050 3W 60 degree UV 265-280nm LED |
| | Inorganic Package
Inorganic Quartz Lens Bonding Technology
High Transparency Quartz Lens
AIN Ceramic Substrate
Flip Chip Eutectic Bonding Technology
Low Thermal Resistance and good Thermal Dispassion
RoHS compliant
View angle 60° |
|
|
|
Item No.: AT5050FT-3M6EV2628-EP
Applications
• Disinfection
• Phototherapy
• Bio-Analysis/Detection
|
Radiation
Pattern
|
Color
|
Part Number Emitter
|
Radiometric Power (mW)
|
|
Min.
|
Typ.
|
|
Lambertian
|
UVC
|
AT5050FT-3M6EV2628-EP
|
20
|
30
|
|
Color
|
Forward Voltage VF (V)
|
Thermal Resistance Junction to Slug (°C/ W)
|
|
Min.
|
Typ.
|
Max.
|
|
UVC
|
15
|
20
|
24
|
6
|
|
Radiation
Pattern
|
Color
|
Peak Wavelength λP
|
Total
Included Angle (degrees) θ0.90V
|
Viewing Angle (degrees)
2 θ1/2
|
|
Min.
|
Typ.
|
Max.
|
|
Lambertian
|
UVC
|
265 nm
|
275 nm
|
280 nm
|
75
|
60
|
| |
|
|
|
|
|
|
|
|
|
|
|
|
|
Enviroment
Operation Temperature: -40°C ~ 60°C
Storage Temperature: -40°C ~ 85°C
Please contact us for more detail.
E-mail: service@all-brite-intl.com
|
|
|
|
