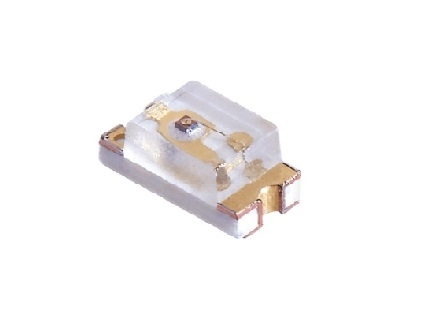

| 0603 Red 660 nm LED |
| | Dice Material : AlInGaP
Light Color : Red 660 nm
Lens Color : Water Clear |
|
|
|
Item No.: AD0603L-20FR662AA-A
|
Parameter
|
Symbol
|
Rating
|
Unit
|
|
Power Dissipation
|
PD
|
75
|
mW
|
|
Peak Forward Current
(1/10 Duty Cycle, 0.1ms Pulse Width)
|
IPF
|
80
|
mA
|
|
Reverse Voltage
|
VR
|
5
|
V
|
|
Operating Temperature Range
|
Topr
|
-40 ~ +85
|
℃
|
|
Storage Temperature Range
|
Tstg
|
-40 ~ +85
|
℃
|
|
Parameter
|
Symbol
|
Min.
|
Typ.
|
Max.
|
Unit
|
Test Condition
|
|
Luminous Intensity
|
IE
|
0.8
|
2.5
|
5.0
|
Mw/sr
|
IF=20mA
|
|
Viewing Angle
|
2 θ 1/2
|
-
|
130
|
-
|
deg
|
IF=20mA
|
|
Peak Emission
Wavelength
|
λp
|
655
|
660
|
665
|
nm
|
Measurement @Peak
|
|
Spectral Line Half-Width
|
Δλ
|
-
|
20
|
|
nm
|
IF=20mA
|
|
Forward Voltage
|
VF
|
-
|
2.05
|
2.6
|
V
|
IF=20mA
|
|
Reverse Current
|
IR
|
-
|
-
|
10
|
μA
|
VR=5V
|
| |
|
|
|
|
|
|
|
|
|
Enviroment
Operation Temperature: -40°C ~ 85°C
Storage Temperature: -40°C ~ 85°C
Please contact us for more detail.
