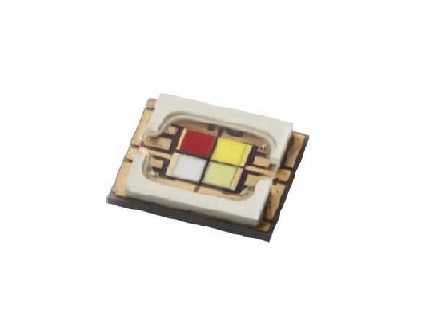

Item No.: AT5747MO-40LERGBW-8A
Applications
• Entertainment lighting (Stage lighting)
• Architectural lighting
• Mood lighting
• Outdoor lighting
• Indoor lighting

Color

Part Number Emitter

Luminous Flux  or Radiometric Power

@1000mA

Refer @2500mA

Min.

Typ.

Typ.

Red

AT5747MO-40LERGBW-8A

90 lm

105 lm

204 lm

Blue

1235 mW

1300 mW

2640 mW

Green

195 lm

225 lm

372 lm

White

235 lm

270 lm

530 lm

Radiation Pattern

Color

Dominant Wavelength λD, or Color Temperature CCT

Total Included Angle (degrees) θ0.90V

Viewing Angle (degrees) 2 θ1/2

Min.

Typ.

Max.

Lambertian

Red

620 nm

624 nm

630 nm

160

120

Blue

450 nm

453 nm

455 nm

160

120

Green

519 nm

525 nm

531 nm

160

120

White

5760 K

6500 K

7250 K

160

120

Enviroment
Operation Temperature: -40°C ~ 85°C
Storage Temperature: -40°C ~ 85°C

Please contact us for more detail.
