Products > LED Component > High Power LED

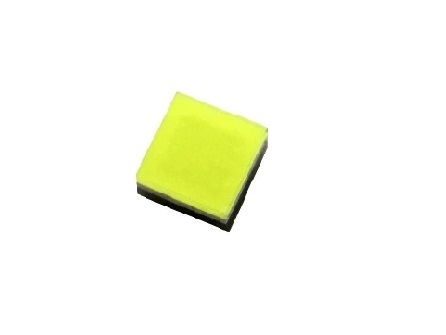

1616 4W Flat Thin PC series LED


Item No.: AT1616Q15T-4WEXXX
Applications
 Entertainment lighting
Commercial Lighting
 Indoor Lighting
 Outdoor lighting
 Stage Lighting
 Consumer Portable
Architectural
 High-End Portable

Color

Part Number

Luminous Flux or Power

@350mA

Refer @700mA

Refer @1000mA

Emitter

Min.

Typ.

Min.

Typ.

Min.

Typ.

PC Red

AT1616Q15T-4WEPR

225 mW

238 mW

408 mW

433 mW

505 mW

535 mW

PC Amber

AT1616Q15T-4WEPA

70 lm

85 lm

127 lm

154 lm

157 lm

190 lm

PC Yellow Green

AT1616Q15T-4WEPYG

150 lm

160 lm

270 lm

290 lm

338 lm

360 lm

Color

Forward Voltage VF (V)

Thermal Resistance Junction to Slug
(
°C/ W)

@ 350mA

Refer @700mA

Refer @1000mA

Min.

Typ.

Max.

Typ.

Typ.

PC Red

2.8

3.0

3.4

3.2

3.3

6

PC Amber

2.8

3.0

3.4

3.2

3.3

PC Yellow Green

2.8

3.0

3.4

3.2

3.3


Enviroment
Operation Temperature: -40°C ~ 105°C
Storage Temperature: -40°C ~ 120°C

Please contact us for more detail.
