Products > LED Component > LED Display

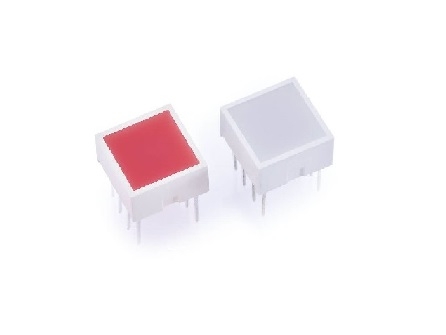

10x10 mm LED Light Bar


Item No.: AR1010TLB-20UR

Parameter

Symbol

Super Red

Unit

Power Dissipation Per Segment

PD

60

mW

Reverse Voltage Per Segment

VR

5

V

Continuous Forward Current Per Segment

IAF

25

mA

Peak Forward Current Per Segment

(1/10 Duty Cycle,0.1ms Pulse Width)

IPF

85

mA

Operating Temperature Range

Topr

-35 ~ +85

Storage Temperature Range

Tstg

-35 ~ +85

Parameter

Symbol

Min.

Typ.

Max

Unit

Condition

Forward Voltage , Per Bar

VF

-

2.0

2.4

V

IF=20mA

Reverse Current , Per Bar

IR

-

-

10

λA

VR=5V

Peak Emission Wavelength

λP

-

640

-

nm

IF=20mA

Dominant Wavelength

λd

-

630

-

nm

IF=20mA

Spectral Line HalfWidth

Δλ

-

20

-

nm

IF=20mA

Luminous Intensity Per Bar

IV

4.8

12.0

-

mcd

IF=10mA


Enviroment
Operation Temperature: -35°C ~ 85°C
Storage Temperature: -35°C ~ 85°C

Please contact us for more detail.
