Products > LED Component > COB LED

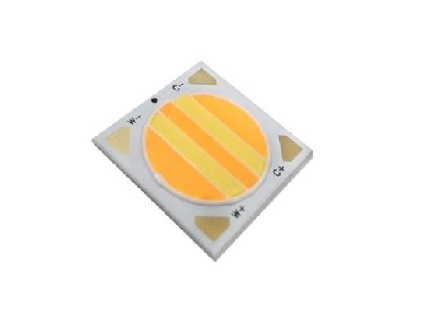

40W Dual Color Dimmable COB LED
 High flux density of lighting source
Good color uniformity
RoHS compliant
More energy efficient than incandescent and most halogen lamps
No UV
Long lifetime

Item No.: AT2424CBD-405LEWM3050
Applications
 Spot lighting
Down lighting

Radiation

Pattern

Color

Part Number

Emitter

Luminous Flux ΦV (lm)

CRI

Min.

Typ.

Typ.

Lambertian

Channel 1

AT2424CBD-405LEWM3050

2930

3260

90

Channel 2

2870

3190

Color

Forward Voltage VF (V)

Thermal Resistance
Junction to Board
(
°C/ W)

Min.

Typ.

Max.

Channel 1

33.0

36.0

38.5

0.9

Channel 2

33.0

35.0

38.5

Color

Bin Code

Color Temperature CCT

Total
Included Angle (degrees)
θ0.90V

Viewing Angle (degrees)
2
θ1/2

Min.

Typ.

Max.

Channel 1

V0

4680 K

5000 K

5400 K

160

120

Channel 2

N0

2970 K

3000 K

3120 K

160

120


Enviroment
Operation Temperature: -40°C ~ 90°C
Storage Temperature: -40°C ~ 120°C

Please contact us for more detail.
