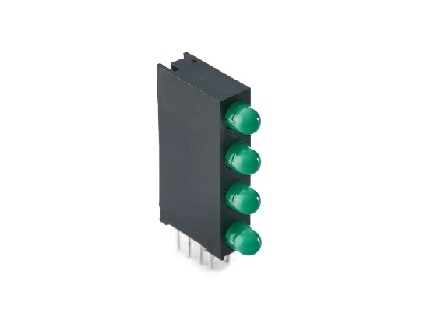

| 5mm 4 LED Lamps with Housing |
| | Dice Material : GaAsP/GaP
Light Color : Yellow 、Red、Yellow Green
Lens Color : Yellow Diffused |
|
|
|
Item No.: ADS050LD45-20140M4UY、ADS050LD45-20140M4DR、ADS050LD45-20140M4YG
|
Parameter
|
Symbol
|
Yellow / Red / Yellow Green
|
Unit
|
Condition
|
|
Min.
|
Typ.
|
Max.
|
|
Forward Voltage
|
VF
|
-
|
2.2 / 2.1 / 2.1
|
2.6
|
V
|
IF＝20 mA
|
|
Reverse Current
|
IR
|
-
|
-
|
100
|
μA
|
VR＝5 V
|
|
Dominant Wavelength
|
λD
|
-
|
587 / 698 / 570
|
-
|
nm
|
IF＝20 mA
|
|
Spectral Line Half-Width
|
Δλ
|
-
|
30 / 80 / 30
|
-
|
nm
|
IF＝20 mA
|
|
Half Intensity Angle
|
2θ1/2
|
-
|
140 / 120 / 120
|
-
|
deg
|
IF＝20 mA
|
|
Luminous Intensity
|
IV
|
-
|
10 / 1 / 20
|
-
|
mcd
|
IF＝20 mA
|
Enviroment
Operation Temperature: -40°C ~ 85°C
Storage Temperature: -40°C ~ 85°C
Please contact us for more detail.
