Products > LED Component > Chip LED

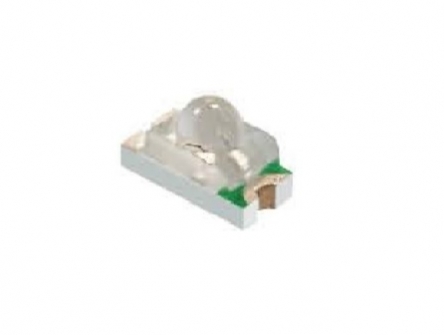

0603 PT 60 degree 940 nm LED
 Dimension (L / W / H): 1.6 x 0.8 x 0.9 mm
Colloid: Black spherical colloid
EIA standard packaging
Environmental protection products meet ROHS requirements
Suitable for automatic placement machine
Suitable for infrared reflow soldering process

Item No.: AD0603L-20F60P9-2AA-A

Parameter

Symbol

Min.

Typ.

Max.

Unit

Test Condition

Collector Emitter
Breakdown Voltage

BVCEO

90

-

160

V

ICEO =100μA
Ee=0mW/cm2

Emitter Collector
Breakdown Voltage

BVECO

7

-

11

V

IECO =10μA
Ee=0mW/cm2

Collector Base
breakdown voltage

BVCBO

70

-

-

V

ICBO =100μA
Ee=0mW/cm2

Collector dark current

ICEO

0

-

150

nA

VCE=50V
Ee=0mW/cm2

Collector-Emitter
saturation voltage

VCE(sat)

0

-

0.2

V

IC =2mA
IB=100
μA

Peak Sensitive
Wavelength

λp

-

-

-

nm

-

Current Amplification
factor

hFE

800

940

2300

-

VCE=5VIC=2mA

Bright current

Icon

0.5

-

1.2

mA

Ee=1mW/cm2
λp=940nm
VCE=5V
IC=20mA

Spectral Bandwidth

λ0.5

700

-

1100

nm

-

Rise time

Tr

-

15

-

μS

VCE=5V
IC=1mA
RL=1000
Ω

Descent time

Tf

-

15

-

μS

VCE=5V
IC=1mA
RL=1000
Ω

Enviroment
Operation Temperature: -25°C ~ 85°C
Storage Temperature: -40°C ~ 85°C

Please contact us for more detail.
