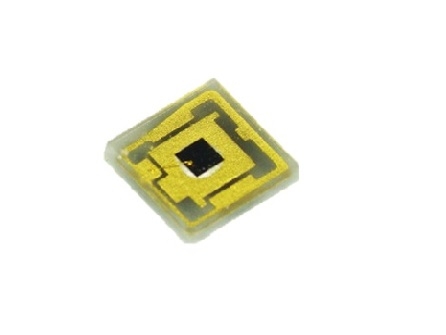

| 3030 3W IR 810nm LED |
| | Packaging glue: colorless transparent silicane gel
Packaging bracket: 3030 aluminum oxide ceramics
Luminous color: Infrared (invisible light) wavelength 810nm
Chip specification: 30mil*30mil
Luminous Angle: 140 degrees
Electrostatic sensitive material |
|
|
|
Item No.: AT3030FL-3LE81
Applications
• Infrared applications systems
•Infrared illumination for cameras
• Security monitoring
• Wireless communication
|
Parameter
|
Symbol
|
Test
Conditions
|
Min.
|
Typ.
|
Max.
|
Unit
|
|
Luminous intensity
|
Ie
|
IF=350mA
|
50
|
80
|
130
|
mW/Sr
|
|
IF=500mA
|
80
|
100
|
150
|
|
Emission Angle
|
2θ1/2
|
-
|
-
|
140
|
-
|
Deg
|
|
Wavelength
|
λp
|
IF=350mA
|
795
|
810
|
825
|
nm
|
|
Half Wave Width
|
Δλ
|
IF=350mA
|
-
|
35
|
-
|
nm
|
|
Forward Voltage
|
VF
|
IF=350mA
|
2.6
|
-
|
3.6
|
v
|
|
IF=500mA
|
2.8
|
-
|
3.8
|
|
Reverse Current
|
IR
|
VR=5.0V
|
-
|
-
|
10
|
μA
|
Enviroment
Operation Temperature: -40°C ~100°C
Storage Temperature: -40°C ~ 100°C
