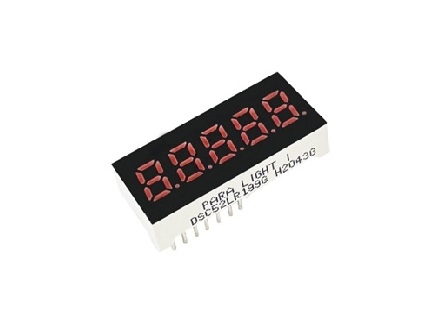

0.2 inch 5 Digit Through Hole Red LED Display
 5.08mm (0.2 Inch ) Digit Height
Common Cathode
I.C. Compatible
Low Power Consumption
Pb Free Products
ROHS Compliance
Black Face, Red Segments

Item No.: AD20FT7-20URBR-CC

Parameter

Symbol

Min.

Typ.

Max

Unit

Condition

Forward Voltage , Per Segment

VF

-

2.0

2.6

V

IF=20mA

Reverse Current , Per Segment

IR

-

-

10

μA

VR=5V

Peak Emission Wavelength

λP

-

640

-

nm

IF=20mA

Dominant Wavelength

λd

-

630

-

nm

IF=20mA

Spectral Line HalfWidth

Δλ

-

20

-

nm

IF=20mA

Luminous Intensity Per Segment

IV

2.0

8.0

-

mcd

IF=10mA

0.2

0.6

-

IF=1mA

Enviroment
Operation Temperature: -35°C ~ 85°C
Storage Temperature: -35°C ~ 85°C

Please contact us for more detail.
