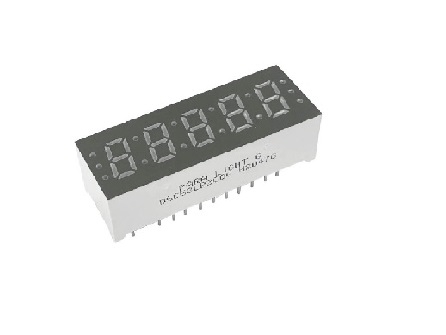

| 0.30 inch 5 digit Through Hole Red Display |
| | 7.60mm (0.30 Inch ) Digit Height
Common Cathode
I.C. Compatible
Low Power Consumption
Pb Free Products
ROHS Compliance
Highlight<-800v The Led Can Withstand The Max Static Level When Assembling Or Operation
Gray Face, White Segments |
|
|
|
Item No.: AD30FT7-20URGW-CC
|
Parameter
|
Symbol
|
Min.
|
Typ.
|
Max
|
Unit
|
Condition
|
|
Forward Voltage , Per Segment
|
VF
|
-
|
2.0
|
2.6
|
V
|
IF=20mA
|
|
Reverse Current , Per Segment
|
IR
|
-
|
-
|
100
|
μA
|
VR=5V
|
|
Peak Emission Wavelength
|
λP
|
-
|
645
|
-
|
nm
|
IF=20mA
|
|
Dominant Wavelength
|
λd
|
-
|
630
|
-
|
nm
|
IF=20mA
|
|
Spectral Line Half－Width
|
Δλ
|
-
|
20
|
-
|
nm
|
IF=20mA
|
|
Luminous Intensity Per Segment
|
IV
|
4.0
|
11.0
|
-
|
mcd
|
IF=10mA
|
|
0.3
|
0.9
|
-
|
IF=1mA
|
Enviroment
Operation Temperature: -35°C ~ 105°C
Storage Temperature: -35°C ~ 105°C
