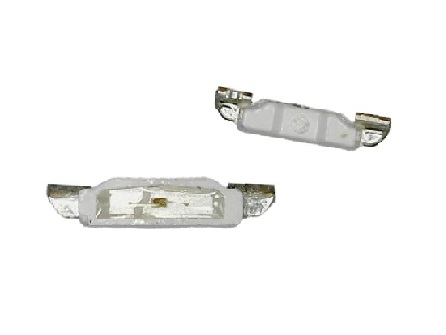

Item No.: SV4014-20XX2AA-A
|
Parameter
|
Symbol
|
Rating
|
Unit
|
|
CW
|
PG
|
UA
|
UAH
|
UB
|
UR
|
|
Positive Maximum Rated Current
|
IF
|
30
|
mW
|
|
Peak Forward Furrent1
|
IFP
|
100
|
mA
|
|
Power Dissipation
|
Pd
|
100
|
120
|
90
|
84
|
90
|
84
|
mA
|
|
Junction Temperature
|
Tj
|
110
|
V
|
|
Operating Temperature
|
Topr
|
-40 ~ +85
|
-30 ~ +85
|
℃
|
|
Storage Temperature
|
Tstg
|
-40 ~ +90
|
-40 ~ +100
|
℃
|
|
Electrostatic Discharge
|
ESD
|
1500
|
1000
|
V
|
|
Thermal resistance[1]
(Junction/ solder point)
|
Rth j-s
|
-
|
10
|
℃/W
|
|
Soldering Temperature2
|
Tsol
|
260±5
|
℃
|
|
Reverse Voltage
|
VR
|
7
|
V
|
Enviroment
Operation Temperature: -30°C ~ 85°C
Storage Temperature: -40°C ~ 100°C
