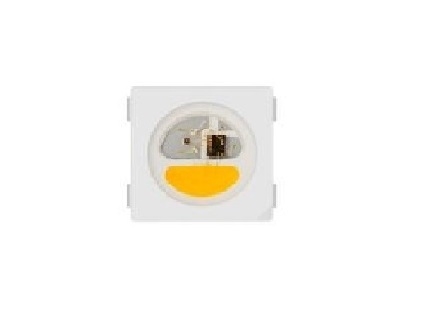

Item No.: AT5050WI-12LERGB-4A、AT5050WI-20LERGB-4A
|
Parameter
|
Symbol
|
Min.
|
Typ.
|
Max.
|
Unit
|
Test Condition
|
|
Chip Internal Supply Voltage
|
VDD
|
3.0
|
5.0
|
5.5
|
V
|
-
|
|
Working Current
|
IDD
|
-
|
1.0
|
1.5
|
mA
|
RGB non-loaded
|
|
High Level Input Voltage
|
VIH
|
2.7
|
-
|
VDD
|
V
|
-
|
|
Low Level Input Voltage
|
VIL
|
0
|
-
|
1.0
|
V
|
-
|
|
High Level Output Voltage
|
VOH
|
4.5
|
--
|
-
|
V
|
IOH=4mA
|
|
Low Level Output Voltage
|
VOL
|
-
|
-
|
0.4
|
V
|
IOL=4mA
|
|
RGB Maximum Sink Current
|
Isink
|
11.4
|
12
|
12.6
|
mA
|
@VDD-VfLED ≥
1.2V)
|
|
19
|
20
|
21
|
|
RGB Leakage Current (When Closed)
|
Ioff
|
-
|
-
|
1
|
uA
|
PWM=0(off)
@RGB 5V
|
Enviroment
Operation Temperature: -25°C ~ 85°C
Storage Temperature: -65°C ~ 120°C
Please contact us for more detail.
