Products > LED Component > High Power LED

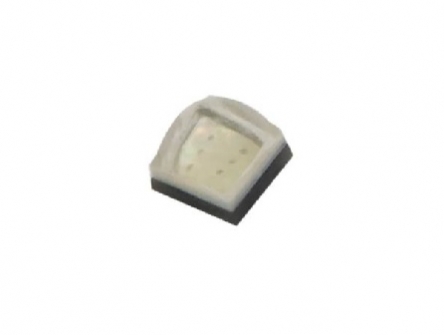

1616 4W Lambertian Blue LED
 Best Moisture Sensitivity: JEDEC Level 1
RoHS compliant
Very wide Viewing Angle

Item No.: AT1616Q13FC-4LEXX

Color

Part Number

Luminous Flux or Power

@350mA

Refer @700mA

Refer @1000mA

Emitter

Min.

Typ.

Min.

Typ.

Min.

Typ.

Blue

AT1616Q13FC-4LEUB

35 lm

47 lm

58 lm

78 lm

74 lm

99 lm

Royal Blue

AT1616Q13FC-4LERB

435 mW

560 mW

740 mW

955 mW

980 mW

1260 mW

Radiation
Pattern

Color

Dominant Wavelength λD,

or Color Temperature CCT

Total

Included Angle (degrees) θ0.90V

Viewing Angle (degrees)
2 θ1/2



Min.

Typ.

Max.



Lambertian

Blue

470 nm

477.5 nm

485 nm

160

130



Royal Blue

450 nm

455nm

460 nm

160

130





Enviroment
Operation Temperature: -40°C ~ 105°C
Storage Temperature: -40°C ~ 120°C

Please contact us for more detail.
