Products > LED Component > Chip LED

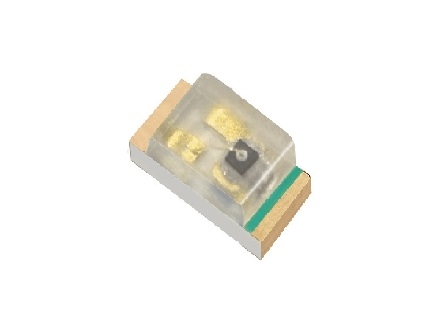

0402 Top View Amber LED
 Dice Material : AlInGaP
Light Color : Amber
Lens Color : Water Clear

Item No.: AR040283-05UA2AA-A

Parameter

Symbol

Min.

Typ.

Max.

Unit

Test Condition

Luminous Intensity

IV

18

--

71

mcd

IF=5 mA

Viewing Angle

2 θ 1/2

-

120

-

deg

Note 2

Dominant Wavelength

λd

586

-

596

nm

IF=5 mA

Spectral Line

Half- Width

Δλ

-

15

-

nm

IF=5 mA

Forward Voltage

VF

1.7

-

2.2

V

IF=5 mA

Reverse Current

IR

-

-

10

μA

VR = 5V

Enviroment
Operation Temperature: -40°C ~ 85°C
Storage Temperature: -40°C ~ 85°C

Please contact us for more detail.
