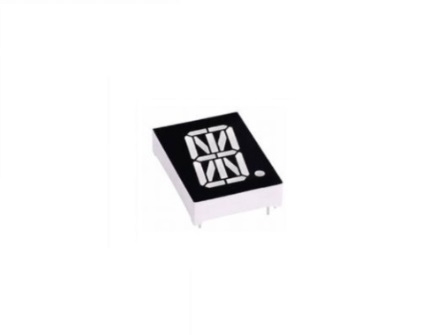

| 0.8inch 14 Segment Amber 590nm LED Display |
| | 20.20mm (0.80 inch ) Digit Height
Common Anode
I.C. Compatible
Low Power Consumption
Pb Free Products
ROHS Compliance
Gray Face , White Segments |
|
|
|
Item No.: AD80TS14-20UAGW-CA
|
Parameter
|
Symbol
|
Min.
|
Typ.
|
Max
|
Unit
|
Test Condition
|
|
Forward Voltage , Per Segment
|
VF
|
-
|
2.0
|
2.4
|
V
|
IF = 20mA
|
|
Reverse Current , Per Segment
|
IR
|
-
|
-
|
10
|
μA
|
VR = 5V
|
|
Peak Emission Wavelength
|
λP
|
-
|
588
|
-
|
nm
|
IF = 20mA
|
|
Dominant Wavelength
|
λD
|
-
|
590
|
-
|
nm
|
IF = 20mA
|
|
Spectral Line Half－Width
|
Δλ
|
-
|
20
|
-
|
nm
|
IF = 20mA
|
|
Luminous Intensity Per Segment
|
IV
|
4.8
|
12.0
|
-
|
mcd
|
IF = 10mA
|
Enviroment
Operation Temperature: -35°C ~ 85°C
Storage Temperature: -35°C ~ 85°C
Please contact us for more detail.
