Products > LED Component > LED Display

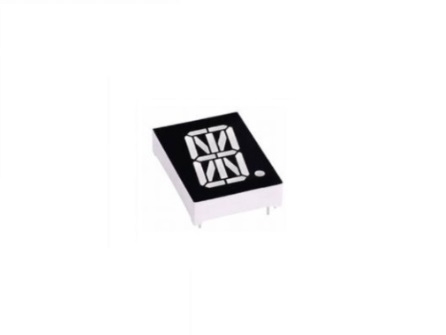

0.8inch 14 Segment Red 640 nm LED Display
 20.20mm (0.80 inch ) Digit Height
Common Anode
I.C. Compatible
Low Power Consumption
Pb Free Products
ROHS Compliance
Gray Face , White Segments

Item No.: AD80TS14-20URGW-CA

Parameter

Symbol

Min.

Typ.

Max

Unit

Test Condition

Forward Voltage , Per Segment

VF

-

1.8

2.2

V

IF = 20mA

Reverse Current , Per Segment

IR

-

-

10

μA

VR = 5V

Peak Emission Wavelength

λP

-

660

-

nm

IF = 20mA

Dominant Wavelength

λD

-

640

-

nm

IF = 20mA

Spectral Line HalfWidth

Δλ

-

20

-

nm

IF = 20mA

Luminous Intensity Per Segment

IV

4.0

10.0

-

mcd

IF = 10mA



Enviroment
Operation Temperature: -35°C ~ 85°C
Storage Temperature: -35°C ~ 85°C

Please contact us for more detail.
E-mail:
service@all-brite-intl.com
