Products > LED Component > LED Display

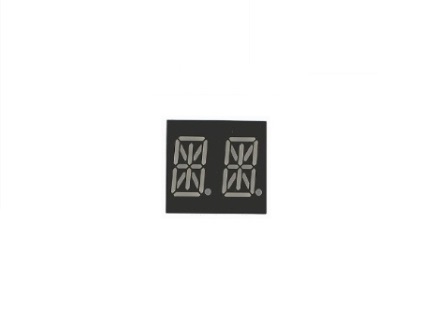

0.8inch 14 Segment Yellow Green 570 nm LED Displ
 20.20mm (0.80 inch ) Digit Height
Common Anode
I.C. Compatible
Low Power Consumption
Pb Free Products
ROHS Compliance
Gray Face , White Segments

Item No.: AD80TS14-20YGGW-CA

Parameter

Symbol

Min.

Typ.

Max

Unit

Test Condition

Forward Voltage , Per Segment

VF

-

2.0

2.4

V

IF = 20mA

Reverse Current , Per Segment

IR

-

-

10

μA

VR = 5V

Peak Emission Wavelength

λP

-

568

-

nm

IF = 20mA

Dominant Wavelength

λD

-

570

-

nm

IF = 20mA

Spectral Line HalfWidth

Δλ

-

30

-

nm

IF = 20mA

Luminous Intensity Per Segment

IV

1.6

4.0

-

mcd

IF = 10mA



Enviroment
Operation Temperature: -35°C ~ 85°C
Storage Temperature: -35°C ~ 85°C

Please contact us for more detail.
