Products > LED Module > LED Flexible Strip

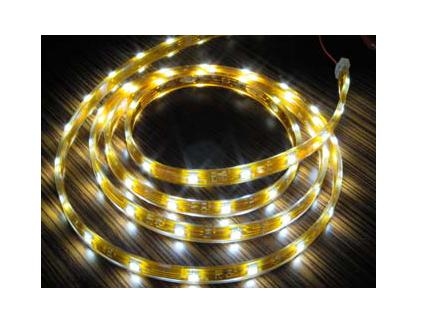

5050 30 led/meter IP40/IP65
 5050 PLCC LED.
All LEDs are made in Taiwan
IP 40 / IP 65 Protection
Total 150 pcs LED, 5 meters long per reel
Available color: Cool White, Warm White, Red, Blue, Green, Amber


Note: Do unfold the flexible PC Board before turn on the LED

Item No.: ABIFL-T30-5050-XX-12V-5m-IP65
                    or ABIFL-T30-5050-XX-12V-5m-IP40

LEDs
LED no.: 3pcs LED per Section, 150pcs per Meter
LED Current: 2916 mA
Beam Angle: 120°

Available Color
Red: 625 nm (625 lm pre Reel)
Blue: 470 nm (290 lm pre Reel)
Amber: 590 nm (540 lm pre Reel)
Green: 525 nm (1455 lm pre Reel)
Cool White: 6000-7000K (1830 lm pre Reel)
Warm White: 2600-2800K (1750 lm pre Reel)

Specification
Input Voltage: 12 V
Power Consumption: 35 W
Connector: 2 pins
Dimension: 100mm x 12mm x 4mm,
                  5000mm x 12mm x 4mm, 150 LED/ pre Reel
Operating Temp.: -5~45 ℃
Net Weight: 390 g
