Products > LED Module > LED Flexible Strip

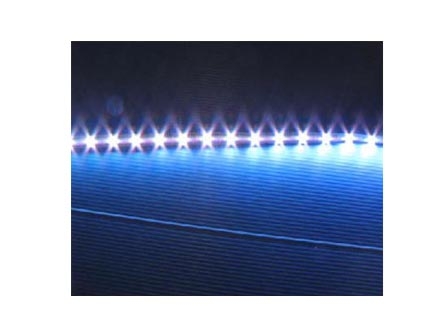

3528 60 led/meter
 3528 PLCC LED.
All LEDs are made in Taiwan
Bare board without water-proof
Total 300pcs LED, 5 meters long per reel
Available color: Cool White, Warm White, Red, Blue, Green, Amber


Note: Do unfold the flexible PC Board before turn on the LED

Item No.: ABIFL-T60-3528-XX

LEDs
LED no.: 3 pcs LED per Section; 60 pcs per Meter
LED Current: 400 mA
Beam Angle: 120°

Available Color
Red: 625 nm (85 lm per Reel)
Blue: 470nm (38 lm per Reel)
Amber: 590 nm (75 lm per Reel)
Green: 525 nm (200 lm per Reel)
Cool White: 6000-7000K (250 lm per Reel)
Warm White: 2600-2800K (235 lm per Reel)

Specification
Input Voltage: 12 V
Power Consumption: 4.8 W
Connector: 2 pins
Operating Temp.: -5~45

Dimension: 50mm x 08mm 3 LED/Section; 20 Sections per Meter
