Products > LED Module > LED Flexible Strip

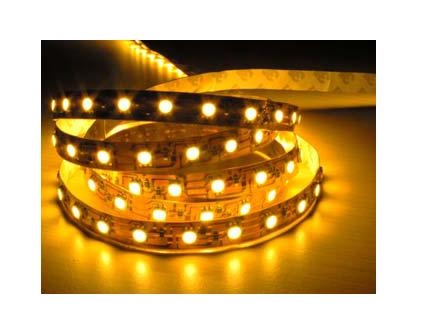

5050 60 led/meter
 5050 PLCC LED.
All LEDs are made in Taiwan
Bare board without water-proof
Total 300 pcs LED, 5 meters per reel
Available color: Cool White, Warm White, Red, Blue, Green, Amber


Note: Do unfold the flexible PC Board before turn on the LED

Item No.: ABIFL-T60-5050-XX-12V

LEDs
LED no.: 3pcs LED per Section; 300pcs per Meter
LED Current: 5833 mA

Beam Angle: 120°

Available Color
Red: 625nm (1250lm pre Reel)
Blue: 470nm (580lm pre Reel)
Amber: 590nm (1080 lm pre Reel)
Green: 525nm (2910lm pre Reel)
Cool White: 6000-7000K (3660lm pre Reel)
Warm White: 2600-2800K (3500lm pre Reel)

Specification
Input Voltage: 12 V
Power Consumption: 70 W
Connector: 2 pins
Operating Temp.: -5~ 45

Dimension: 50mm x 12mm per Section; 5000mm x 12mm pre Reel
Net Weight: 140 g
