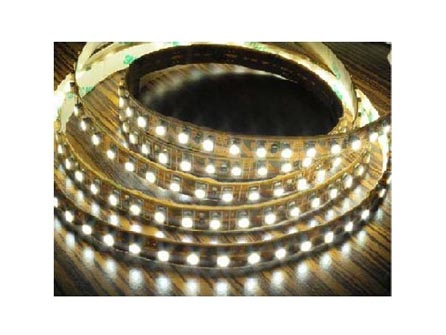

| 3528 120 led/meter |
| | 3528 PLCC LED.
All LEDs are made in Taiwan
Bare board without water-proof
Total 600pcs LED, 5 meters long per reel
Available color: Cool White, Warm White, Red, Blue, Green, Amber
Note: Do unfold the flexible PC Board before turn on the LED |
|
|
|
LEDs
LED no.: 3 LED per Section; 120 pcs per Meter; 600 LEDs per Reel
LED Current: 750mA per Meter; 3750 mA per Reel
Beam Angle: 120°
Available Color
Red: 625 nm (800 lm pre Reel)
Blue: 470 nm (400 lm pre Reel)
Amber: 590 nm (667 lm pre Reel)
Green: 525 nm (1917 lm pre Reel)
Cool White: 6000-6500 K (3000lm pre Reel)
Warm White: 2700-2900 K (3000lm pre Reel)
Specification
Input Voltage: 12 V
Power Consumption: 45W per Reel
Connector: 2 pins VCC-GND
Dimension: 25mm x 8mm per Section; 5000mm x 8mm per Reel
Operating Temp.: -5~45 ℃
Net Weight: 150 g
|
|
|
|
